Description

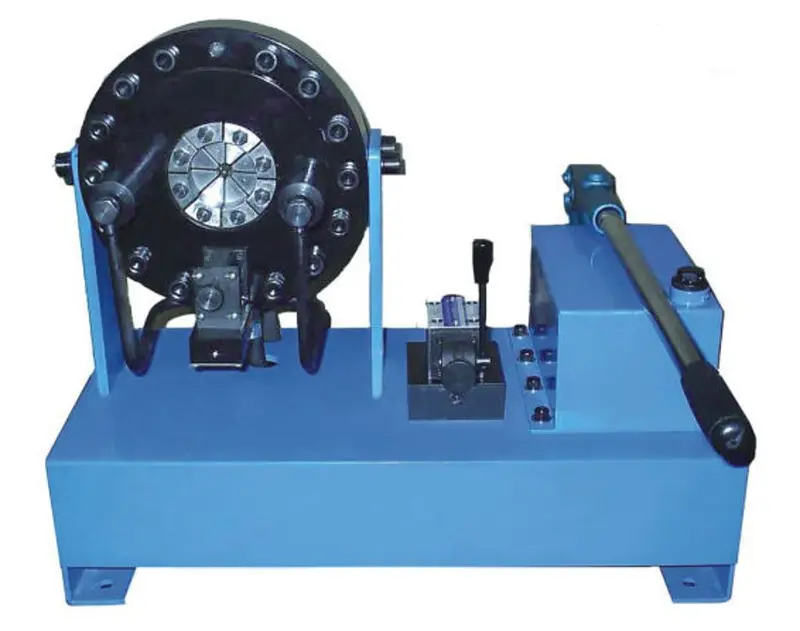

Aiko JT160 Manual Hydraulic Hose Crimper | Model : JT160
Features :
- Manual opening and closing control.
- Compact, light, operated by hand-pump, Mobile. Available be used for field work.
- Dual ramps crimping. High crimping force can reach to 1600KN.
- The red light will illuminate when crimping size is reached.
Specifications :
Technical Specifications:
|
Crimping Force KN |
1600/160(Ton) |
Hose Internal Size mm |
4-25 |
|
Oil Pressure (Mpa) |
31.5 |
Opening (mm) |
+20 |
|
Weight without oil (KG) |
52 |
Die Sets |
8 |
Dimensions:
|
Length (mm) |
560 |
Width (mm) |
460 |
Height (mm) |
460 |
Applicable Product Range:
|
Hose Type |
Max hose Size |
|
3 wire braids or textile |
1″ |
|
2 wire spirals |
1″ |
Standard Die Sizes:
|
Die No. |
14 |
16 |
19 |
22 |
26 |
30 |
34 |
39 |
|
Crimping Range (mm) |
14-16 |
16-19 |
19-22 |
22-26 |
26-30 |
30-34 |
34-39 |
39-45 |
|
L (mm) |
45 |
45 |
45 |
55 |
55 |
55 |
65 |
65 |
