Aiko Semi-Electric Stacker – 2-Ton Capacity, 2-Meter Lift Height, PU Wheels for Open Pallets | Model: PT-CTD2.0/2.0

Description

Aiko 2Ton, 2m Semi-Electric Stacker Pu Wheel for Open Pallet | Model : PT-CTD2.0/2.0

Features :

• Semi-electric stacker is an economical choice for a variety of basic materials handling needs, which is a half electric forklift for loading, unloading and short distance transportation.
• Low to no noise pollution
• Reduced malfunction rates
• Electrical assistance for lifting and unloading (up and down motion) ONLY
• MANUAL movement of front and back required

Specifications :

• Model : PT-CTD2.0/2.0
• Capacity : 2000 kg
• Lifting Height : 2000 mm
• Mast type : Double
• Fork Length L1 : 1000 mm
• Min. Height of fork : 90 mm
• Load Center : 500 mm
• Charging Voltage : AC220V
• Outer width of legs : 635 mm
• Inner width of legs : 395 mm
• Adjustable width of forks : 360 – 706 mm
• Rear wheel Size : Ø80 x 93
• Front wheel size Ø80 x 65
• Weight 415 kg
• Closed height H3 : 1650 mm
• Extended Height : 2650 mm

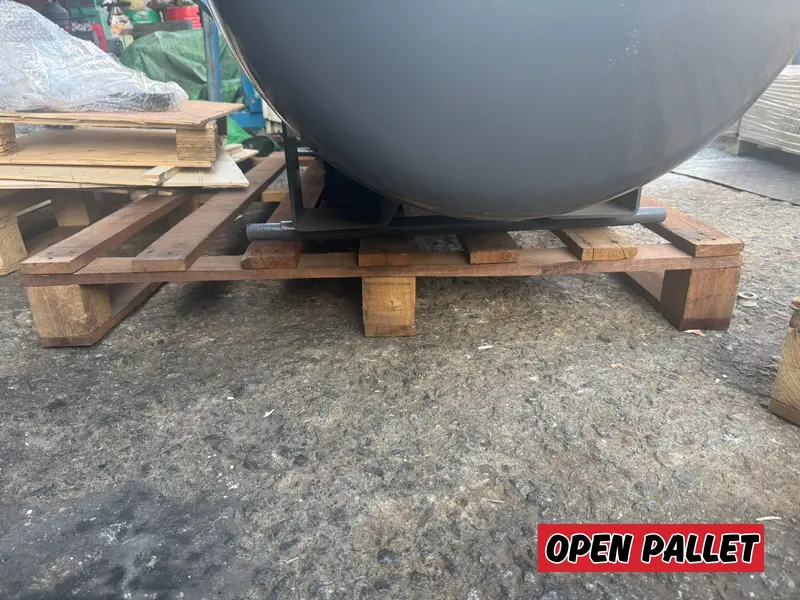

  *Please take note only for open pallet
