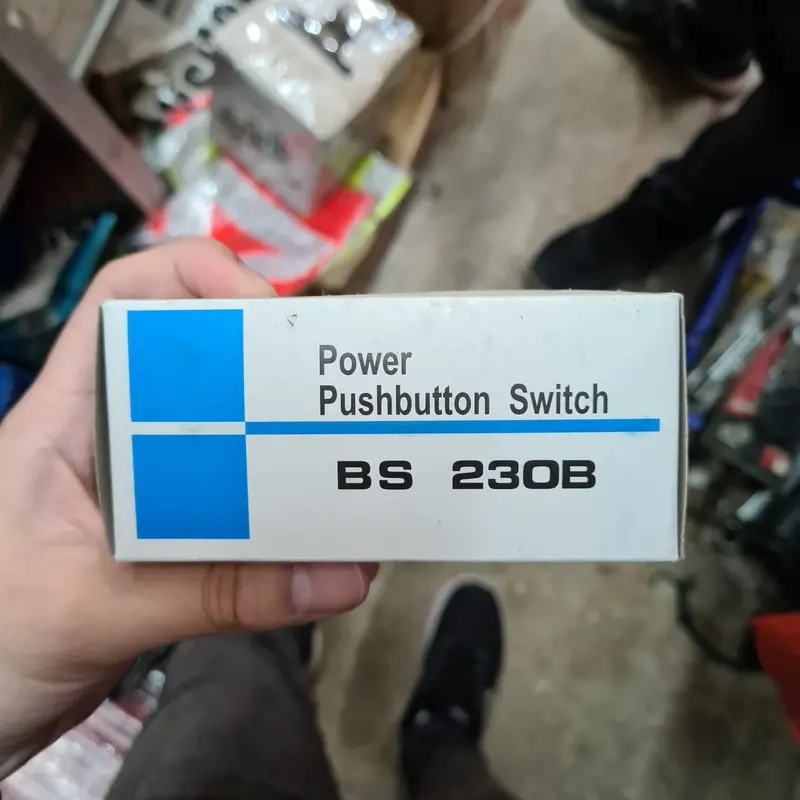

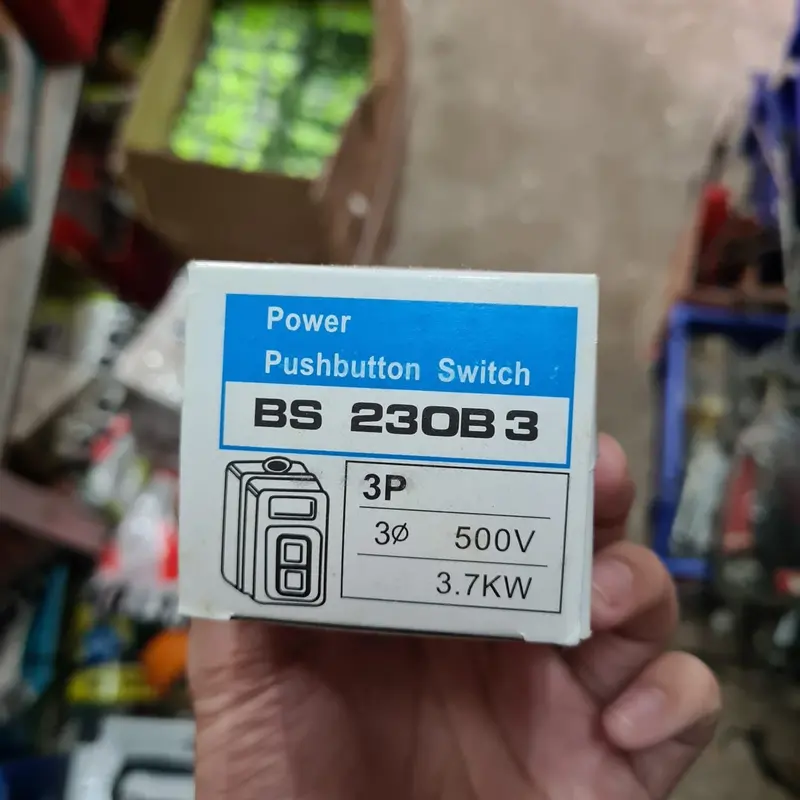

BS230B3 3-Pole 30A On/Off Switch (3.7 kW Load Rated)

Description

Features :

• The exposed type is a general-purpose type for mounting on indoor machines and walls.
• The metal case is a general-purpose type made of sturdy metal for mounting on indoor machines and walls.
• The plastic case’s materials means that no grounding is required.
• The fuse-base type includes a fuse base for packing in fuses.
• The equipment-mount type is horizontally oriented and meant for mounting on equipment.

Specifications :

• Maximum Electric Device Capacity Three-Phase 200/220 V(kW) : 3.7 kw
• Rated Current : 30 A
• Ambient Temperature : -15 to 40°C
• Rated insulation voltage : DC500
• Connection Terminal : M5 Screw
• Features : Standard
• Button Color : Black (ON) / Red (OFF)
• Lettering Plate : ON, OFF
• Number of Poles : For Three – phase
• Contact Configuration : 2a
