Dancomair 1000L Vertical ASME Air Receiver Tank – 10 Bar with Standard Accessories

Description

Dancomair 1000 Litres Vertical Air Receiver Tank 10bar ASME come with Standard Accessories | Model : 12-TV1000L

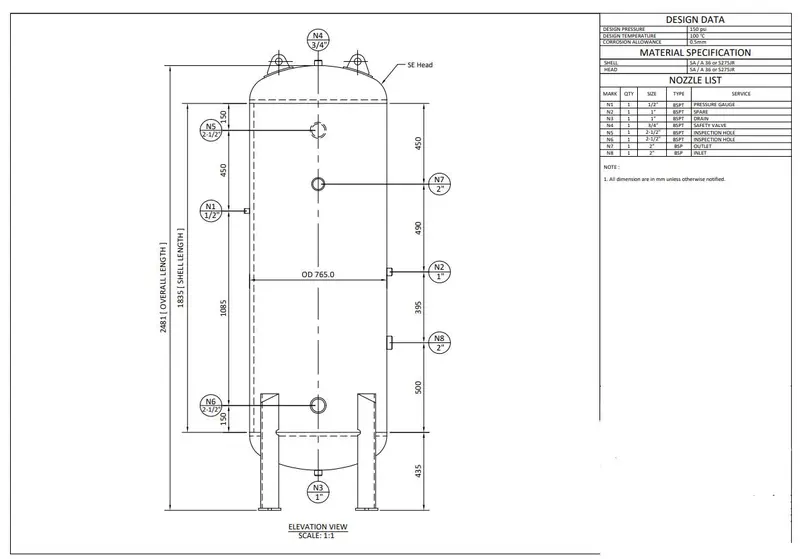

Specifications :

• Tank Size: 1000 ltr
• Design Code :
• ASME Section VI II,
• Division 1, Edition 2017
• Design Pressure : 150 psi
• Corrosion Allowance : 0.5 mm
• In/Outlet (inch) : 2 Socket
• Material Shell & Head : S275JR
• Overall Length : 2481 mm
• Outside Dia meter : 765 mm
• Shell Length : 1835 mm
• Weight (App rox : 345 kg
• Inspection Hole : 2 1/2″ Socket
• Internal Coating : Nil
• External Coating :
• Red Oxide
• DMES tandard Grey
• Approval : DOSH Malaysia
• Standard Accessories inclusive
• Black Steel Casing Pressure Gauge ( S M) 4 x 3/8 ” 1pc, Brass Safety Valve 3/4 Lever Type) 1pc, Brass Dra in Valve 1 1p c
• Excluded Material & Calibration Certificate for
• Standard Accessories
• Excluded MDR, NDT & Third P arty Inspection & Certification
