Description

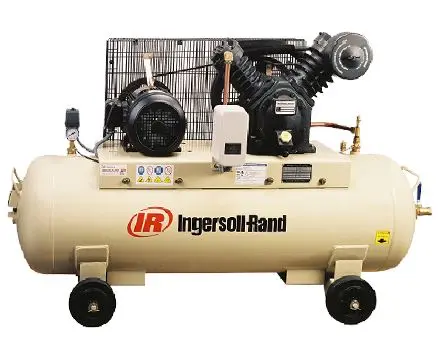

Ingersoll-Rand 5.5HP 150L 415V 2 Stage Air Compressor | Model : 2475K5/12
Description :
- The 2475K5/12 air compressor consists of a heavy duty fabricated steel compressor unit mounted on a Singapore MOM approved receiver tank.
- This 415V Belt driven unit operates at 5.5hp and 175 psi pressure; true industrial use compressors and delivers 17.1cfm.
- The drive is V-Belt type with provision for easy adjustment of Belt slack. An easily removed, totally enclosed wire Belt guard. Precision balanced low-pressure aluminium and high pressure cast iron pistons provide smooth operation.
- Ingersoll Rand’s Type 30 inNOvative two-stage design allows for cooler operating temperatures and overall better power performance. Built with robust cast iron cylinders, the 415V Belt-driven units are a quality investment.
Specification :
| Free Air Delivery | 9.8cfm/278lpm |
| Pump | 2340 cast iron |
| NO. of Cylinders | 2 |
| Compression Stages | 2 |
| Free Speed (rpm) 1020 | 1100 |
| Auto Condense Drain NO | No |
| Motor Size | 2.2kw/3hp |
| Power Type | 415v 50Hz electric |
| Drive Type Belt | Belt |
| Working Pressure | 175psi/1200kpa |
| Starter | DOL |
| Constant/ Dual Controls | N/A |
| Centrifugal Unloader | N/A |
| Air Tank Capacity (L) | 150 |
| Weight (kgs) | 374 |
| Dimensions Lxlxh (mm) | 1440x540x970 |
| NOise Level dB(A)@1m | 84 |
