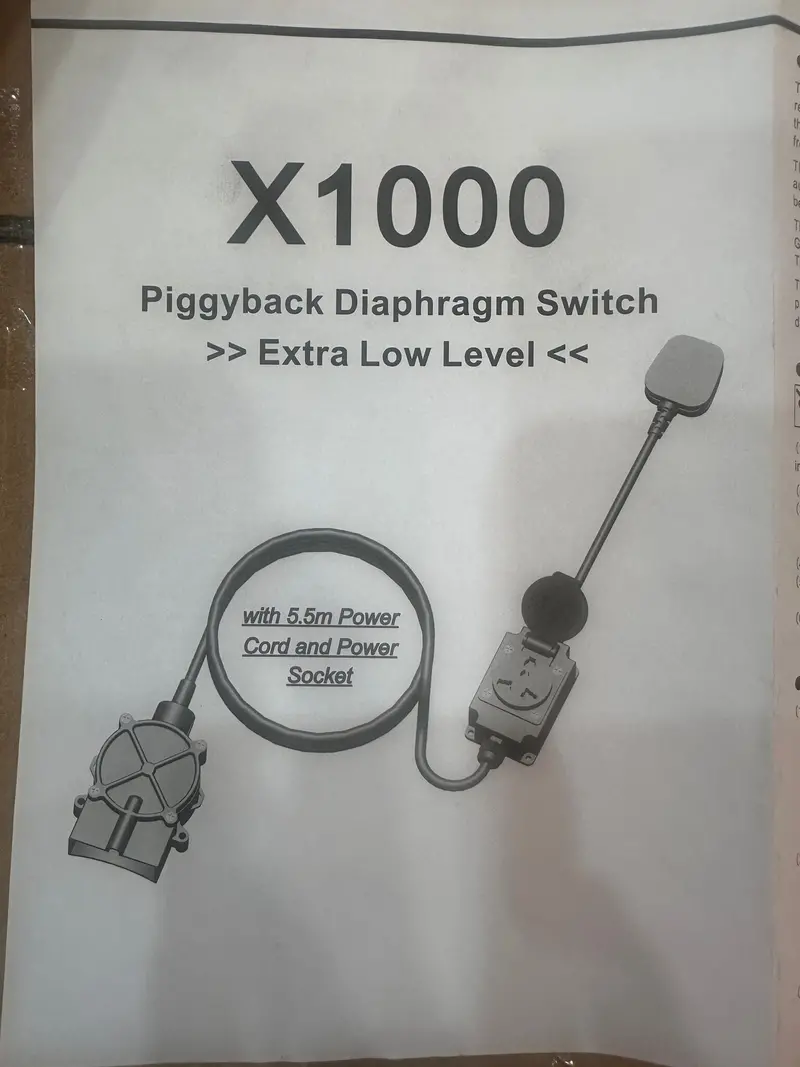

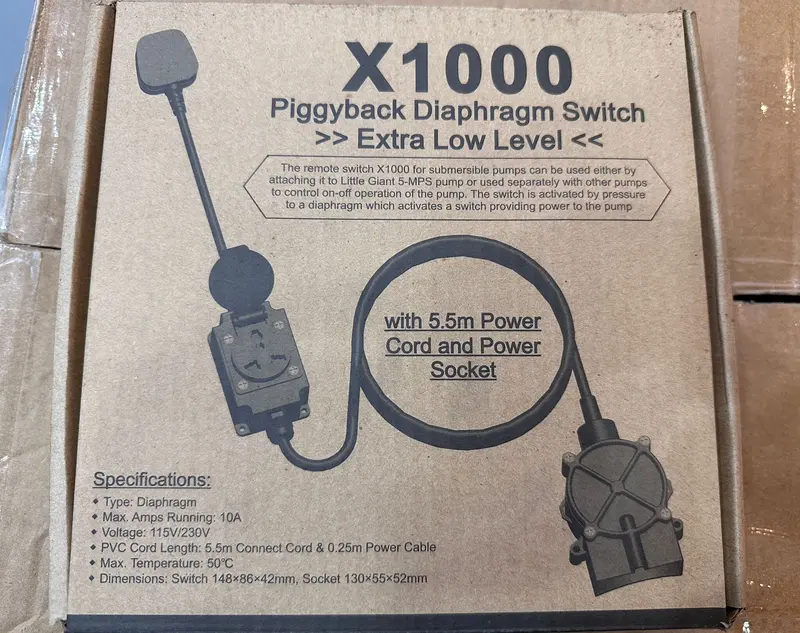

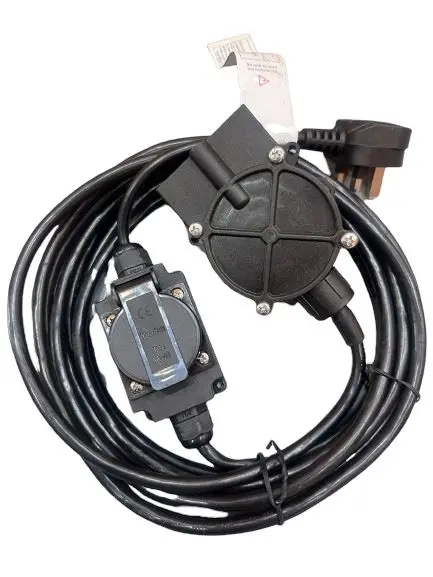

Mepcato Piggyback Diaphragm Switch (Extra Low Level) | Model : WP*X1000
The remote switch X1000 for submersible pumps can be used either by attaching it to Little Giant 5-MPS pump or used separately with other pumps to control on-off operation of the pump. The switch is activated by pressure to a diaphragm which activates a switch providing power to the pump.

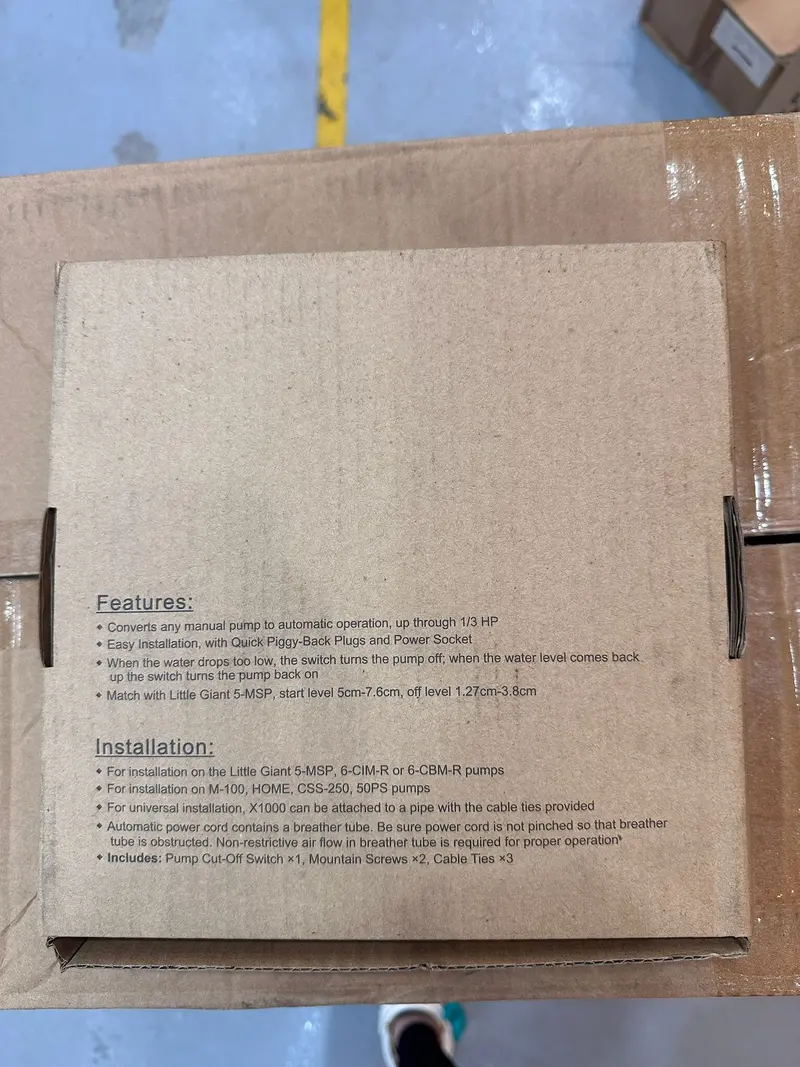

Features :
- Converts any manual pump to automatic operation, up through 1 HP

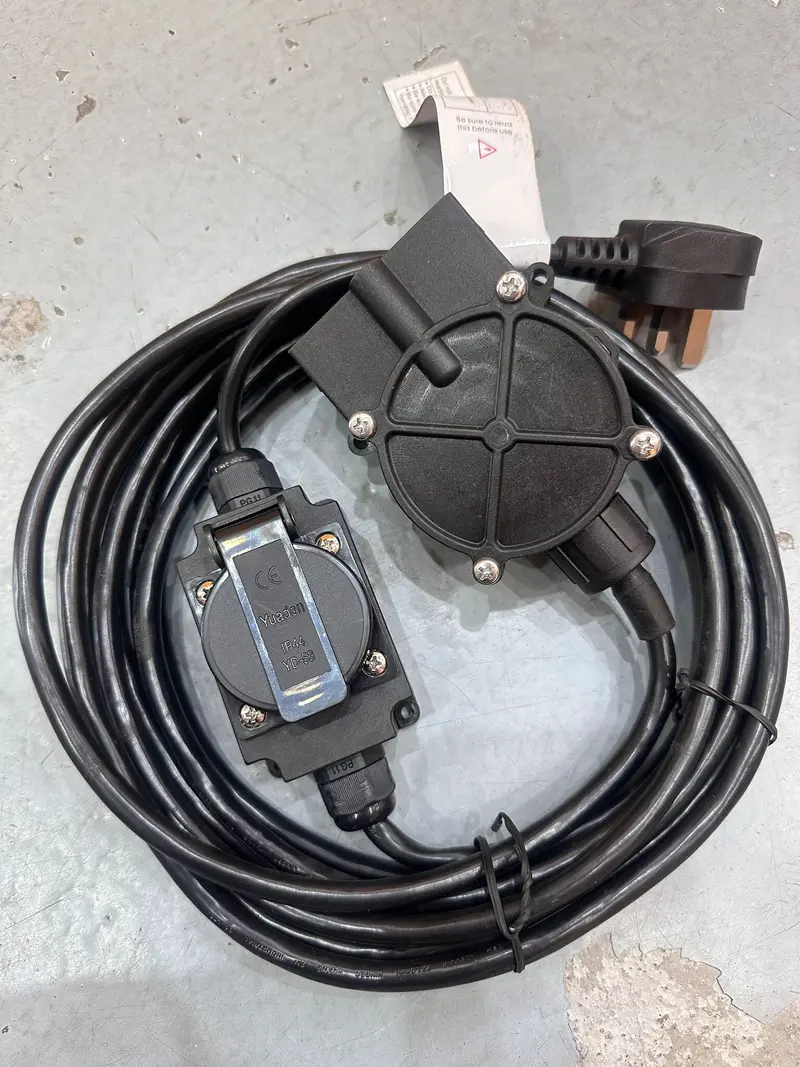

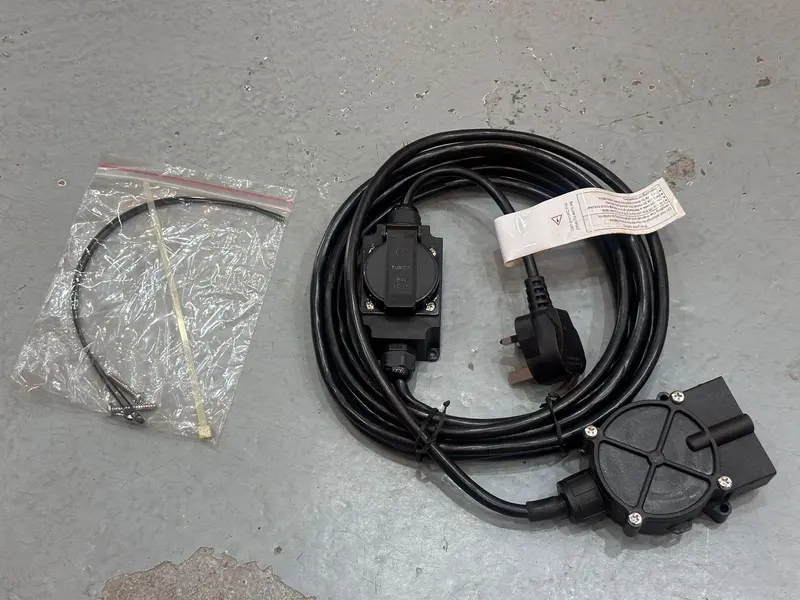

- Easy Installation, with Quick Piggy-Back Plugs and Power Socket
- When the water drops too low, the switch turns the pump off; when the water level comes back up the switch turns the pump back on
- Match with Little Giant 5-MSP,start level 5cm-7.6cm,off level 1.27cm-3.8cm
Specifications :
- Type : Diaphragm
- Max. Amps Running : 10A
- Voltage : 115V/230V
- PVC Cord Length : 5.5m connect cord & 0.25m power cable
- Max. temperature : 50°C
- Dimensions : Switch – 148x86x42mm, Socket – 130x55x52mm
Installation :

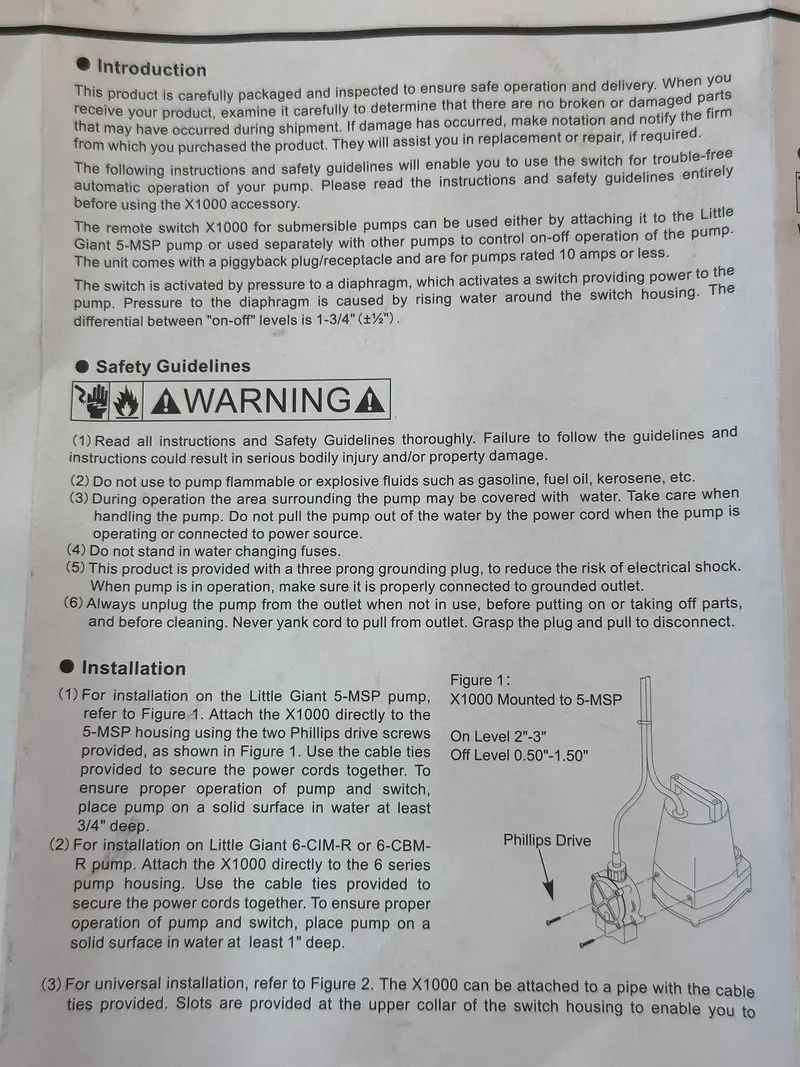

- For installation on the Little Giant 5-MSP, 6-CIM-R or 6-CBM-R pumps
- For installation on M-100, HOME, CSS-250, 50PS pumps

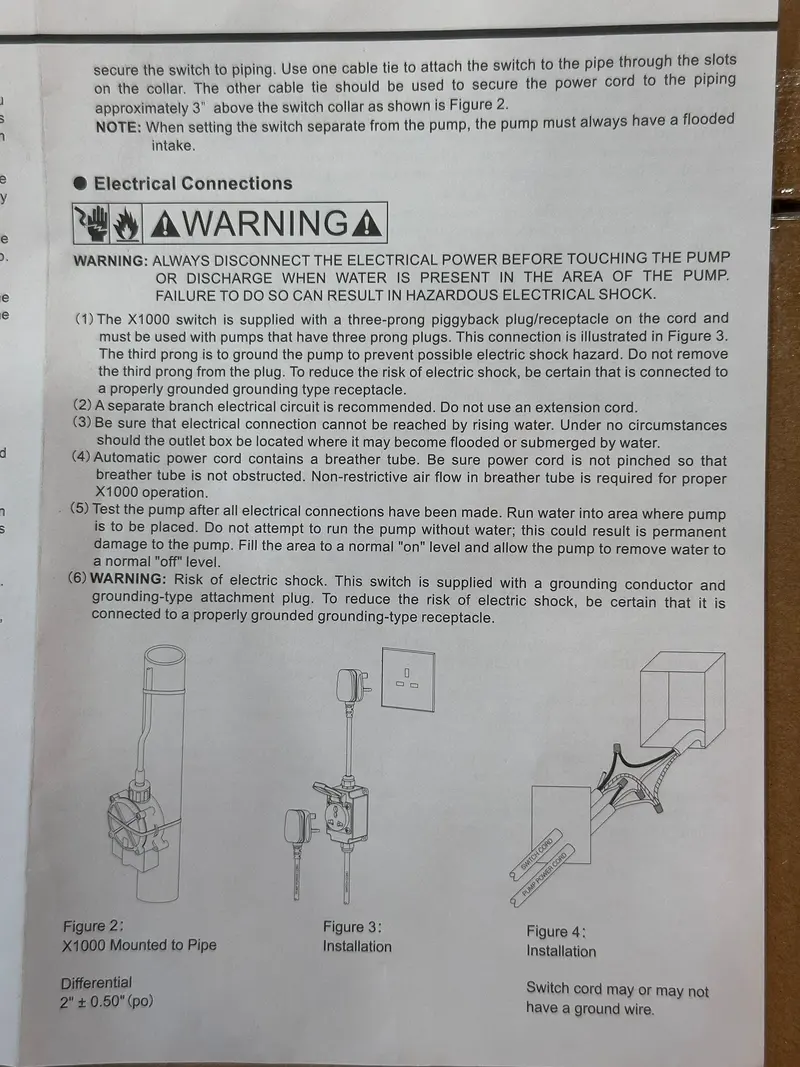

- For universal installation, X-1000 can be attached to a pipe with the cable ties provided
- Automatic power cord contains a breather tube. Be sure power cord is not pinched so that breather tube is obstructed. Non-restrictive air flow in breather tube is required for proper operation

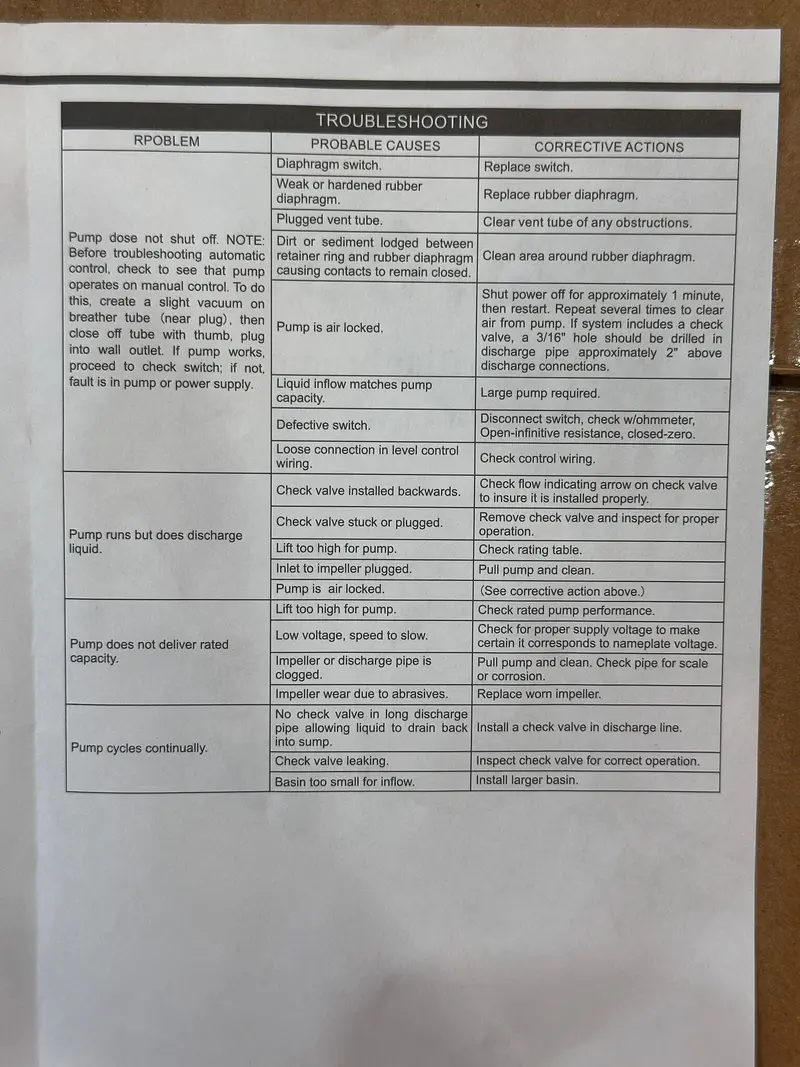

- Test the pump after all electrical connections have been made. Do not attempt to run the pump without water; this could result in permanent damage to the pump
