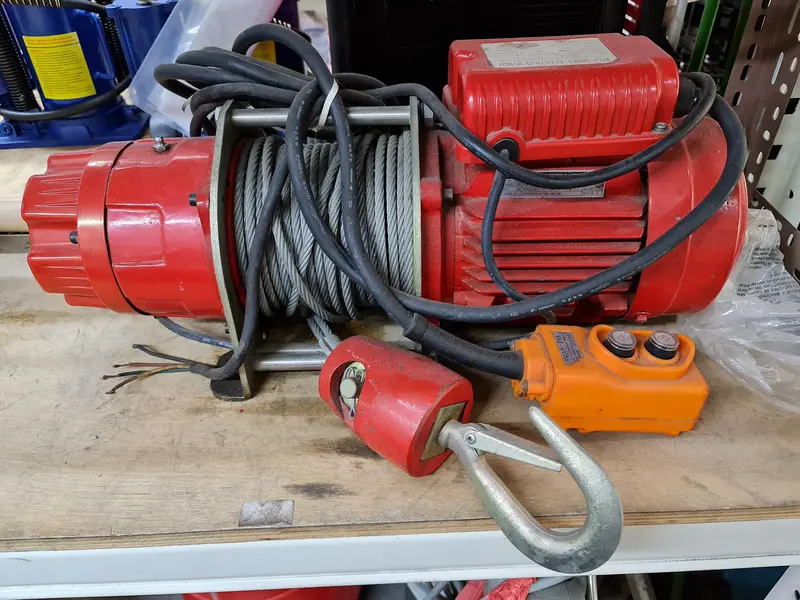

Aiko 415V 300Kg Compact Winch | Model : WIN-KDJ300E1
Features :
- Wire Rope ~ Fixing No escape of wire rope from the drum by means of P.T.screwdevice.
- Drum Transmission ~ The shaft direct driving drum provides rope replacement and altemation of rotation with easy.
- Electromagnetic ~ Designed for both static and dynamic loading. Brake will automatically apply in the event of power cut. Large friction surface area. No adjustments or serving requirement. Gear Box ~ Provides strengh,durability and non-worry of breakage of structure .Special Motor ~ insulated B, with the features of big start torque, small inertia, lower temperature rise, it can work frequently for a long time. Driving Gear The heat treated gear with bearings features durable performance and anti-wear. Machine Fixture It is made of super armour plate, used for suspender, lifter and girder.
Specifications :

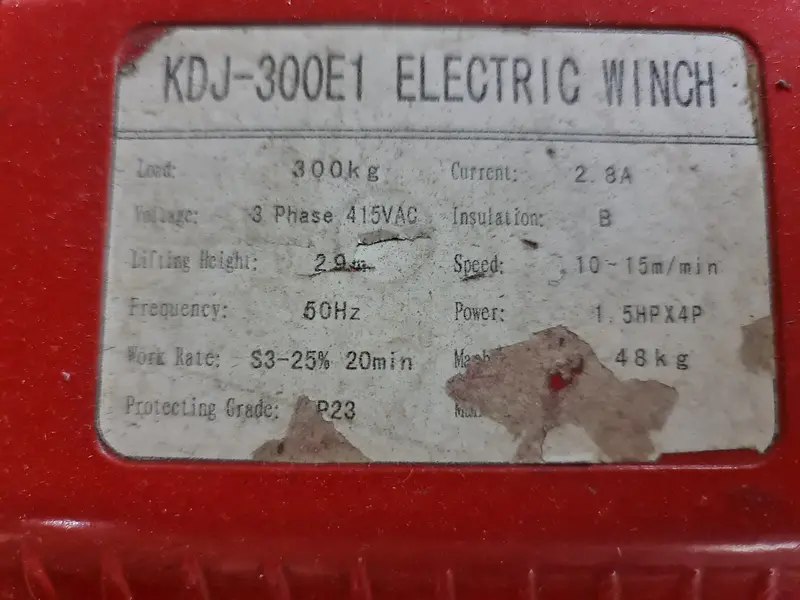

- Model : KDJ-300E1
- Load rated(kg) : 300 Speed(m/min) 11 13
- Motor(KW) : 1.1×4
- Voltage(V) AC : Three phase 220/380/415/440/480
- Frequency(Hz) : 50/60
- Lifting Height(m) : 29
- Steel Cable(mm×m) : ф6×30 ф7×30
- N.W.(kg) : 48
- Work Level : M3
