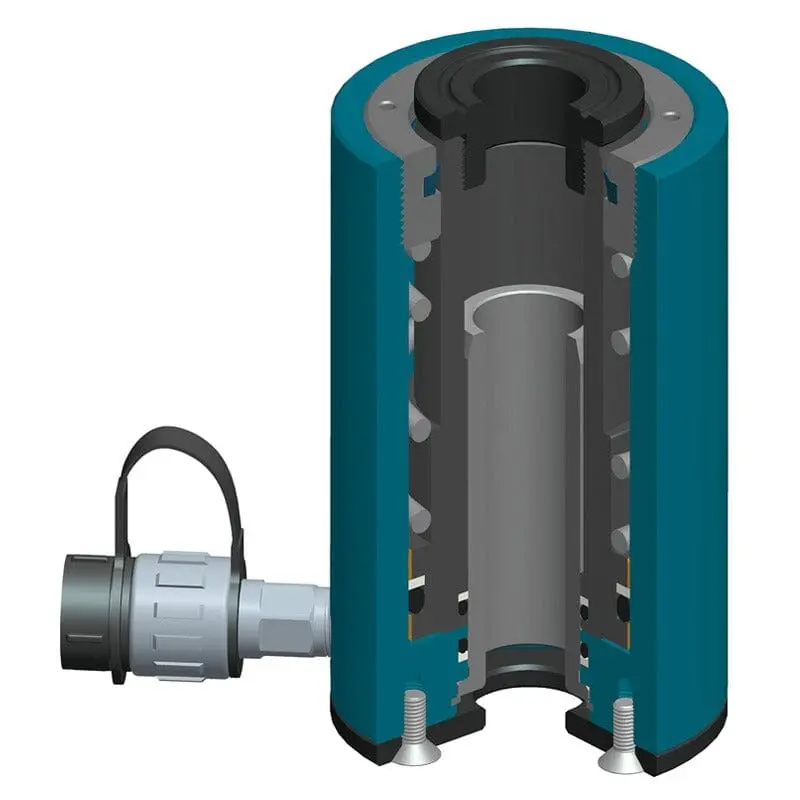

Zupper Single Action Hollow Plunger Hydraulic Cylinder 60T 50MM/ 100MM | Model： ZUPPER-RCH
Features:

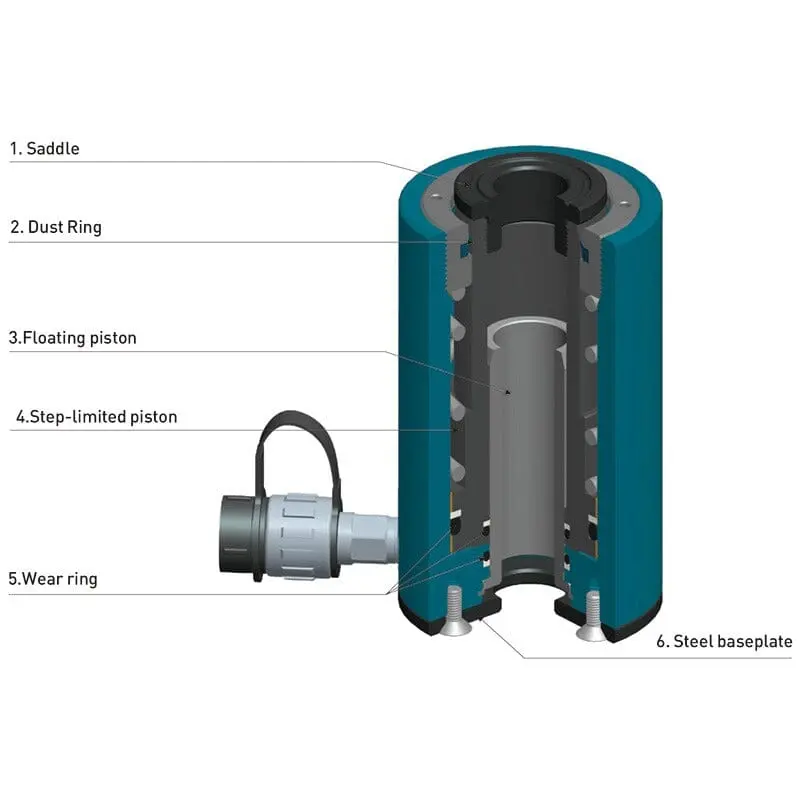

● Steel base plate and saddle for protection the hollow piston and cylinder damage and increasing abrasion performance
● Dust ring stop the dust into cylinder during extension
● Floating type plunger prevents the block caused by slight unbalance loading of piston
● Step-limited piston prevents over-travel and is capable of stopping the spring compressed completely
● Wear ring prevent metal to metal contact, increasing cylinder life and resistance to be scratched
● High-efficient seal extends cylinder life
● Handles included on all models
Specifications:
| Model | RCH-6050 | RCH-60100 |
| Output (t) | 60 | 60 |
| Stroke (mm) | 50 | 100 |
| Effactive area (cm²) | 98.9 | 98.9 |
| Oil Capacity (L) | 0.495 | 0.989 |
| Height of Product (mm) | 210 | 282 |
| Extended Height (mm) | 260 | 382 |
| Outside dia (Φmm) | 165 | 165 |
| Bore dia (Φmm) | 135 | 135 |
| Principal axis Dia (Φmm) | 100 | 100 |
| Outer Dia of Piston (mm) | 54 | 54 |
| Oil Supply Hold Thread NPT | 3/8 | 3/8 |
| Saddle Protrusion from Plgr (mm) | 12 | 12 |
