Zupper Single-Action Hollow-Plunger Hydraulic Cylinder – RCH Series

Description

Zupper Single Action Hollow Plunger Steel Cylinder | Model : ZUPPER-RCH-

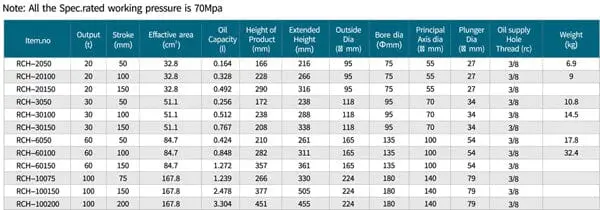

Specifications :

20T (50mm)

Model : RCH-2050

Output(t) : 20

Stroke(mm) : 50

Effective area(cm²) :  32.8

Oil capacity(l) : 0.164

Height of product(mm) : 166

Extended height(mm) : 216

Outside diameter(Φmm) : 95

Bore diameter(Φmm) : 75

Principal axis diameter(Φmm) : 55

Plunger diameter(Φmm) : 27

Oil supply hole thread(rc) : 3/8

Weight(kg) : 6.9

20T (100mm)

Model : RCH-20100

Output(t) : 20

Stroke(mm) : 100

Effective area(cm²) :  32.8

Oil capacity(l) : 0.328

Height of product(mm) : 228

Extended height(mm) : 266

Outside diameter(Φmm) : 95

Bore diameter(Φmm) : 75

Principal axis diameter(Φmm) : 55

Plunger diameter(Φmm) : 27

Oil supply hole thread(rc) : 3/8

Weight(kg) : 9

30T (50mm)

Model : RCH-3050

Output(t) : 30

Stroke(mm) : 50

Effective area(cm²) :  51.1

Oil capacity(l) : 0.256

Height of product(mm) : 172

Extended height(mm) : 238

Outside diameter(Φmm) : 118

Bore diameter(Φmm) : 95

Principal axis diameter(Φmm) : 70

Plunger diameter(Φmm) : 34

Oil supply hole thread(rc) : 3/8

Weight(kg) : 10.8

30T (100mm)

Model : RCH-30100

Output(t) : 30

Stroke(mm) : 100

Effective area(cm²) :  51.1

Oil capacity(l) : 0.512

Height of product(mm) : 238

Extended height(mm) : 288

Outside diameter(Φmm) : 118

Bore diameter(Φmm) : 95

Principal axis diameter(Φmm) : 70

Plunger diameter(Φmm) : 34

Oil supply hole thread(rc) : 3/8

Weight(kg) : 14.5

30T (150mm)

Model : RCH-30150

Output(t) : 30

Stroke(mm) : 150

Effective area(cm²) :  51.1

Oil capacity(l) : 0.767

Height of product(mm) : 208

Extended height(mm) : 338

Outside diameter(Φmm) : 118

Bore diameter(Φmm) : 95

Principal axis diameter(Φmm) : 70

Plunger diameter(Φmm) : 34

Oil supply hole thread(rc) : 3/8
